Large lighting projects can become complicated quickly. There are wires everywhere, tricky connections, and lots of chances to make mistakes. The Lutron Wire Landing Board helps installers keep things tidy and organized.
If you’re working on a large HomeWorks project, knowing how to use this tool properly can save you time and stress. It’s all about keeping things simple so you can do the job right the first time. With a clear plan, big jobs won’t feel so overwhelming.
What Is the Lutron Wire Landing Board?

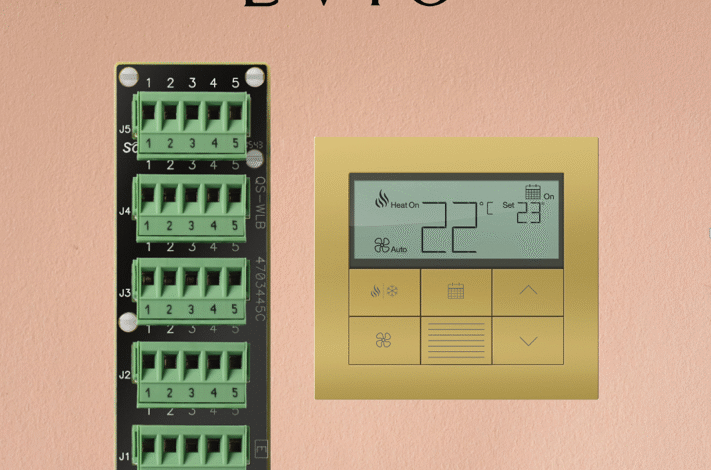

The Lutron Wire Landing Board is a simple panel that helps you connect and organize all those control wires in one place. Instead of having loose wires all over, you land them neatly on labeled terminals.
This means that every wire has its designated spot, making it easy to locate and check later. It’s like giving your project a clean, professional look without extra work. Anyone looking at it can quickly understand the layout. That saves time for everyone on the team.
Why Should You Care About Organization?
When wires are a mess, even minor fixes take a long time. Finding one bad wire in a tangled bunch is frustrating.
A clean layout with the board makes it clear where every wire goes. If something fails later, you can see the problem fast. The layout also makes inspections or handovers much easier. Clients love seeing neat, well-organized panels.
How Does the Wire Landing Board Work?
It’s a simple but smart setup. Each terminal block on the board matches the QS connector on your Lutron processor.
You connect your wires according to the labels—no guessing. Each pin can hold two 18 AWG wires, allowing you to daisy-chain runs or easily handle in-and-out connections. That means fewer extra parts to buy. It also reduces mistakes when connecting.
See also: Technology and Sustainability: Innovations for a Greener Planet
Tips for a Good Installation
Placement: Install the board at the bottom of the enclosure to keep wires neat and out of the way. This helps avoid clutter and keeps everything easily accessible.
Torque: Don’t overtighten the screws—just enough to hold securely. Overdoing it can damage the board. Tighten them gently but firmly so connections stay safe. Always use the right tool for even pressure.
Labeling: Clearly label every wire. This saves hours later if you need to check or change anything.
A clear label avoids confusion if someone else needs to service it. It’s a small step that makes a big difference.
Shield Drain: Use Pin 5 for the cable shield to keep a continuous ground path. This practice helps avoid noise or signal problems.
A good ground keeps the system stable. Always double-check the wiring before closing the panel.
Keeping Things Tidy in Large Projects
Large jobs mean more wires and more chances for mistakes. The landing board allows you to handle multiple zones or runs without chaos.
Adding new zones later? Just land the new wires on another board. This eliminates the need to search for loose ends or reroute existing cables. This solution keeps things neat even as projects grow. Clients will notice and appreciate the tidy work.
Troubleshooting Made Easy
Service calls can be painful when wires are messy. With the board, you can see every connection at a glance.
If there is a short circuit or a break in the wiring, you will quickly identify it. Clients don’t want to wait for hours while you sort out wires. Fast fixes mean happy clients and fewer repeat visits. You look more professional when problems are solved quickly.
Why Evig Recommends It
Evig, the Lutron UAE distributor, helps installers maximize the benefits of HomeWorks systems. They know that big projects require clean, error-free installations.
The Lutron Wire Landing Board is part of that. By using it, you get a reliable, neat setup that’s easier to install, service, and expand in the future. Evig also offers advice and support for tricky installs. They’re there to help you succeed.
Final Thoughts: Make Life Easier for You and Your Client
In big projects, the small details matter. Using a Lutron Wire Landing Board keeps things clean, saves time, and reduces errors.
It means fewer headaches for you and a better experience for your client. The result is work you can be proud of every time. With Evig on your side, you can be confident that you’re using the right tools and getting the job done effectively.
